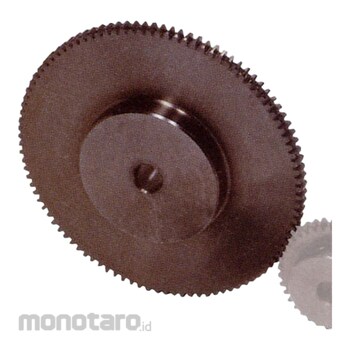

A spur gear with a narrow tooth width dimension designed for light loads.
Gears for power transmission.
KHK Gears (Kohara Gear Industry) SSY Spur Gear
#Grup produk P110732381
Spesifikasi
| Material | S45C |
|---|---|
| Number of Teeth | 30 |
| Type | Spur Gear |
| Shape | S1T |
| Surface Treatment | Black dyed |
| Accuracy class | JIS N8 class (JIS B 1702-1) |
| Backlash (mm) | 0.08 to 0.18 |
| Gear Surface Treatment | Cutting |
| Hole Diameter A (mm) | 8 |
| Hub Diameter (mm) | 25 |
| Hub Length F (mm) | 8 |
| Module | 1 |
| Overall Length G (mm) | 14 |
| Pressure Angle (°) | 20 |
| Thread Size | M5 |
| Tolerance A | H7 |
| Tooth Surface Hardness (HB) | 194 or less |
| Tooth Type | Normal Teeth |
| Tooth Width E (mm) | 6 |
