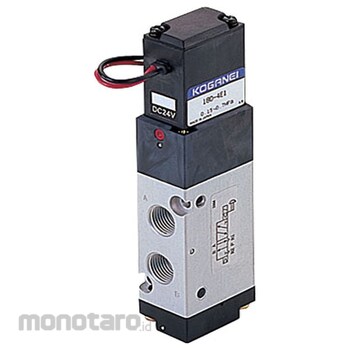

KOGANEI Solenoid Valve 180 Series Single Pilot Type
#Grup produk P110729767
Spesifikasi
| Suitable fluid | Air |
|---|---|
| Type of Acting | Internal Pilot Type |
| Number of Ports | 3 |
| Operating Temperature Range (°C) | (Atmosphere and fluid used) 5-50 |
| Lubrication | Unnecessary |
| Assured Pressure Resistance (MPa) | 1.05 |
| Flow Characteristics | Sonic conductance C (dm³/(s.bar)) 2.04, effective cross-sectional area (Cv value) (mm²) 10.2 (0.57) |
| Maximum Operating Frequency (Hz) | 5 |
| Mounting Side | freedom |
| Operating Pressure Range (MPa) | 0.15 to 0.7 |
| Piping Connection Size | Rc1/8 |
| Shock Resistance (m/s²) | 1373.0 (294.2 axial) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A rich series configuration that supports any application, including drive control of cylinders with a cylinder diameter of 20 to 80 mm.
