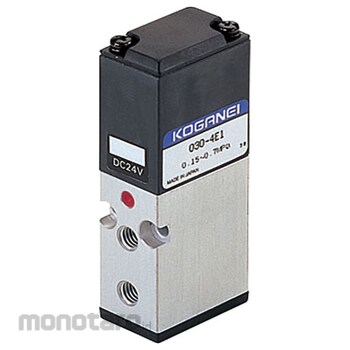

KOGANEI Solenoid Valve 030 Series Direct Acting
#Grup produk P110729703
Spesifikasi
| Suitable fluid | Air |
|---|---|
| Dimensions d (mm) | 53.2 |
| Type of Acting | Direct Acting Type |
| Dimension A (mm) | 56 |
| Dimension B (mm) | 49 |
| Assured Pressure Resistance (MPa) | 1.05 |
| Dimension C (mm) | 63 |
| Flow Characteristics | Sonic conductance C (dm³/(s.bar)) 1 (P) → 2 (A) 0.12, 2 (A) → 3 (R) 0.16, effective cross-sectional area (Cv value) (mm²) 1 (P) → 2 (A) 0.6 (0.03), 2 (A) → 3 (R) 0.8 (0.04) |
| Lead Wire Length (mm) | 300 |
| Lubrication | Unnecessary |
| Maximum Operating Frequency (Hz) | 5 |
| Mounting Side | freedom |
| Number of Ports | 3 |
| Operating Pressure Range (MPa) | (Atmosphere and fluid used) 5-50 |
| Operating Temperature Range (°C) | 5 to 50 |
| Piping Connection Size | M5x0.8 |
| Response Time (s) | (When ON/OFF) 0.01/0.025 or less |
| Shock Resistance (m/s²) | 117.7 |
| Terminal Connection | Grommet type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Suitable for drive control of all small actuators such as double acting and single acting cylinders with a cylinder diameter of 6 to 20 mm.
