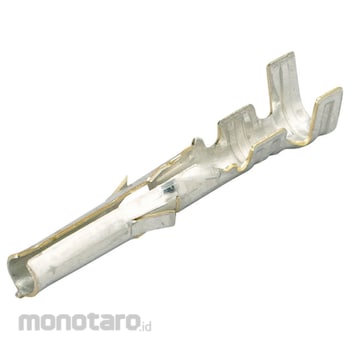

Molex Relay Connector Pitch 1625 Miniature Terminal
#Grup produk P110716888
Spesifikasi
| Type | Crimp Terminal |
|---|---|
| Shape | Female Shape |
| Surface Treatment | Crimped Part = Tin (Sn); Base = Copper (Cu) |
| Rated Voltage (V) | Max. 250 |
| Rated Current (A) | Max. 5 |
| Cell Spacing (mm) | 3.68 |
| Contact/Treatment Material | Brass (CuZn) /0.9μm (35μ ″) Tin (Sn) |
| Cover strip length (mm) | 2.6 to 3.4 |
| Form | Rose |
| Material Thickness (mm) | 0.2 |
| Suitable Tool | Manual crimping tool: 11-26-0007 (JHTR1719C); Extraction tool: 11-26-7034 (J5800-002); Insertion tool: 11-02-0001 (HT1807) |
| Suitable for Housing | 1625-R, 1625-R1, 1625-R2 |
| Wire Crimping Range (AWG#) | 18202224 |
| Wire Sheath Outer Diameter (mm) | 1.50 to 3.10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
