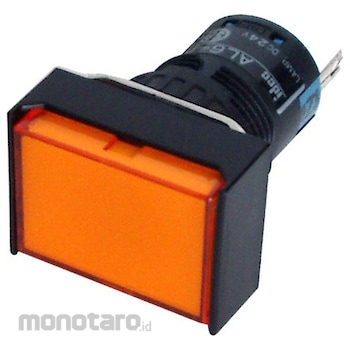

IDEC Rectangular Pilot Lights A6 Series
#Grup produk P110715481
Spesifikasi
| Shape | Long Angle |
|---|---|
| Protection Class | IP40 |
| Rated Voltage (V) | AC/DC 24 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Storage Temperature (°C) | -30 to 80 |
| Contact Resistance (miliΩ) | 50 or less (initial value) |
| Engraving Area (mm) | 12x18 |
| Lens Size (mm) | 18x24 |
| Light Source | LED |
| Maximum Engraving Depth (mm) | 0.5 |
| Mounting Hole Diameter (mm) | 16 |
| Nameplate Dimensions (mm) | 13.7x19.7 |
| Operating Ambient Temperature (°C) | -25 to 55 (no freezing) |
| Shock Resistance (m/s²) | 200 (malfunction), 500 (endurance) |
| Vibration Resistance Frequency (Hz) | 5-55 (Single Amplitude 0.75mm) |
