Since this product supplies the calibration gas with the minimum amount of gas released, it can save a lot of gas consumption compared to the conventional push can joint that does not have a decompression mechanism / flow rate control mechanism.
Since a decompression mechanism is provided, gas can be supplied at a stable flow rate (mL / sec).

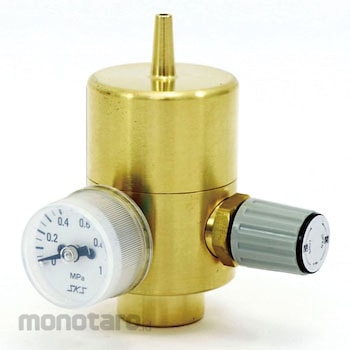

YUTAKA Standard Gas Push Can Pressure Regulator
#Grup produk P110666194
Spesifikasi
| Material (Main Unit) | C3604BD |
|---|---|
| Mass (g) | 400 |
| Pressure Gauge | Inlet side pressure gauge: 1MPa meter |
| Material (O-ring) | FKM |
| Adjust Pressure Range (MPa) | 0.1 |
| Cover Material | C3604BD |
| Fitting (mm) | Inlet: Special fitting, Outlet: Φ4-6 hose fitting |
| Flow Rate (ml/minute) | Release: 400 |
| Inlet Pressure (MPa) | 0.1-0.8 |
| Material (Valve Seat) | C3604BD |
| Material (seat) | Valve adjustment: PTFE |
| Material (valve stem) | C3604BD+PCTFE |
