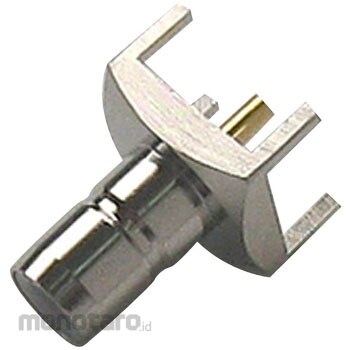

TO-CONNE (former Toyo Connector) Smb Type Coaxial Connector Receptacle For Printed Circuit Board
#Grup produk P110662587
Spesifikasi
| Type | Connector |
|---|---|
| Shape | Straight |
| Surface Treatment | (Main body) Ni, (Center contact) Au |
| Standard | MIL-C-39012, IEC169-10 |
| Rated Voltage (V) | AC335 |
| Characteristic Impedance (ohm) | 50 |
| Compatibility | When combined with a connector conforming to the standard |
| Connection Method | Board mounting |
| Connection Type | Push-on |
| Connector Type | SMB |
| Contact Material | (Center) Beryllium copper / (External) Brass |
| Contact Resistance (miliΩ) | 3 or less (between center contacts), 2 or less (between outer contacts) in a manner that the voltage drop between the contacts does not exceed 1 mV at approximately 1 kHz alternating current or direct current. |
| Contact Shape | Female |
| Fitting Shape | Receptacle |
| Frequency (GHz) | 4GHz |
| Insulation Resistance (MΩ) | 1000 or more (DC500V) |
| Operating Temperature Range (°C) | -40-+85 |
| Withstand Voltage (V/minute) | AC1000V |
