Double slider type that combines FBR27S type on the back. Widely used in various OA equipment.
* Allowable load and mass are the values when two products are combined as one set.

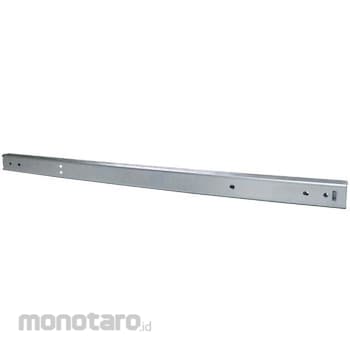

THK Slide Rail
#Grup produk P110661588
Spesifikasi
| Type | Slide type |
|---|---|
| Stroke (mm) | 229 |
| Dimension L (mm) | 200 |
| Dimension A (mm) | 140 |
| Dimension B (mm) | 160 |
| Accuracy (mm) | Rail length L: ± 0.8, Stroke S: ± 3 |
| Dimension S (mm) | 229 |
| Mass (kg) | 0.64/set |
| Number of Mounting Holes | Drawer rail 5, cabinet rail 5 |
| Number of Tiers | 3 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rail Length (mm) | 200 |
| Rated Load (N) | 370/set |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Allowable load and mass are the values when two products are combined as one set.Ulasan Produk
