Opens 180° with double joint mechanism type hinge.
It becomes flat when opened 180°.
The recommended door sizes in the table below are based on two hinges used for one door.
The load capacity is the value when two hinges are used. Please see INDEX for calculation conditions.

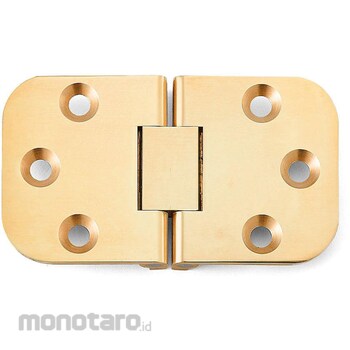

SUGATSUNE (LAMP) Sewing Machine Hinge (Precision Thick Hinge)
#Grup produk P110657840
Spesifikasi
| Material | Brass (brass) |
|---|---|
| Type | Sewing machine hinge |
| Width (mm) | 70 |
| Overall Length (mm) | 40 |
| Finish | Polishing |
| AS ONE Part Number | 64-6787-95 |
| Mass (g) | 64 |
| Maximum Door Height (mm) | 700 |
| Maximum Door Width (mm) | 450 |
| Number of Screw Holes | 6 |
| Opening Angle (degrees) | 180 |
| Recommended door size | (Dimensions) W450 x H700 x t21 mm or less<br> (Mass) 4 kg or less |
| Wall Thickness (mm) | 2 |
| maximum door thickness(mm) | 21 |
