It is a pressure reducing valve for water supply that eliminates the noise of the pressure reducing valve itself and is safe even for water supply at midnight.
By adopting a balanced structure, the secondary side pressure is always kept constant without being affected by the primary side pressure.
It is a water supply law standard compliant product.
With a closed structure, fluid does not flow out even if the diagram is damaged.
Pressure reducing valve for door-to-door water supply for apartment houses.

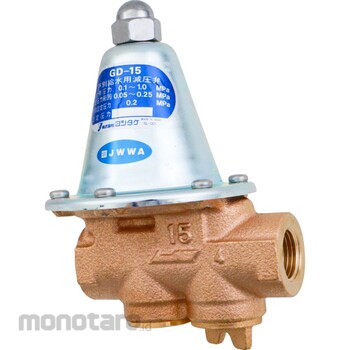

Yoshitake Pressure Reducing Valve For Water
#Grup produk P110644165
Spesifikasi
| Type | Water pressure reducing valve for individual housing |
|---|---|
| Suitable fluid | Tap water |
| Dimension L (mm) | 90 |
| Dimension H (mm) | 146 |
| Connector | JIS Rc |
| Diaphragm Material | NBR |
| Flow Rate (L/minute) | (Minimum adjustable) 0.5 |
| Mass (kg) | 0.87 |
| Material (Main Unit) | CAC |
| Material (Valve Member) | NBR |
| Material (Valve Seat) | CAC |
| Maximum Decompression Ratio | 0.4173611111111111 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.03 |
| Nominal Diameter A | 15 |
| Nominal Diameter B | 45293 |
| Operating Temperature Range (°C) | 5-60 |
| Primary Pressure (Kpa) | 0.1-1.0 |
| Secondary Pressure (MPa) | 0.05-0.25 |
| Thermal Insulation | Flame retardant material |
