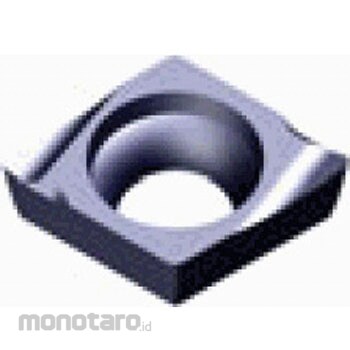

Tungaloy Chip Ccgtr/L-W08
#Grup produk P110568120
Spesifikasi
| Material | SH730 |
|---|---|
| Thickness (mm) | 1.79 |
| Corner Radius (mm) | 0.4 |
| Chip breaker | One side |
| Thickness Tolerance (mm) | ±0.13 |
| Blade Length l (mm) | 4.8 |
| Clearance Angle (⁰) | 7 |
| Corner Height Tolerance (mm) | ±0.025 |
| Cutting Blade Length (mm) | 4.8 |
| Hole Diameter d1 (Φmm) | 2.3 |
| Inscribed Circle Diameter (Φmm) | 4.76 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shape (⁰) | Diamond shape 80 |
| Socket Shape (⁰) | Partially cylindrical hole one side 40-60 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
| With Or Without Hole | Yes |
