Uses a bio-net lock method that is compact and lightweight and easy to combine.
When using a 75Ω cable with a 50Ω type plug, if the frequency is 200MHz or less, it can be used with a 75Ω electrical line.

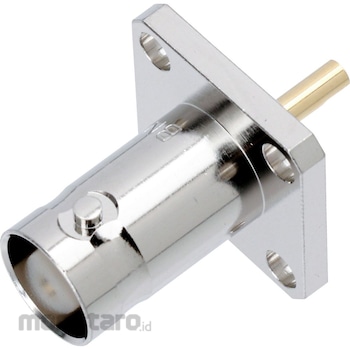

TO-CONNE (former Toyo Connector) Bnc Receptacle
#Grup produk P110560128
Spesifikasi
| Type | Receptacle |
|---|---|
| Shape | Straight |
| Surface Treatment | (Main body) Ni, (Center contact) Au |
| Standard | MIL-C-39012, JIS-C-5412 (equivalent) |
| Terminal Shape | Solder |
| Characteristic Impedance (ohm) | 50 / (less than 200MHz) 75 |
| Compatibility | When combined with a connector conforming to the standard |
| Connection Method | Solder |
| Connection Type | Bayonet lock |
| Connector Type | BNC |
| Contact Material | (Center) Phosphor bronze / (External) Brass |
| Contact Resistance (miliΩ) | 3 or less (voltage drop between contacts does not exceed 1mV at approximately 1kHz AC or DC) |
| Contact Shape | Female |
| Frequency (GHz) | 4GHz |
| Frequency Range (MHz) | 0-4000 |
| Insulation Resistance (MΩ) | 1000 or more (DC500V) |
| Operating Temperature Range (°C) | -40-85 |
| Rated Voltage (V) | AC500 |
| Withstand Voltage (V/minute) | AC1500 |
