Wonder Kit 2.4W Power Amplifier
#Grup produk P110548977
Spesifikasi
| Type | Craft kit, kit |
|---|---|
| Included Accessories | Detent volume x 1 |
| Output | Speaker (4-16Ω) support |
| Input | Line level, kit |
| Board dimensions (width W x depth D x height H) (mm) | 45x34x17 |
| Gain (dB) | Voltage / approx. 50 times (+34) fixed |
| Maximum Output Power (W) | About 2.4 (at 12V4Ω load), about 1.5 (at 12V8Ω load) |
| Operating Current (mA) | Approx. 350 (12V4Ω load), Approx. 200 (12V8Ω load) |
| Power Supply Voltage (V) | DC12 (DC10-12 is possible) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

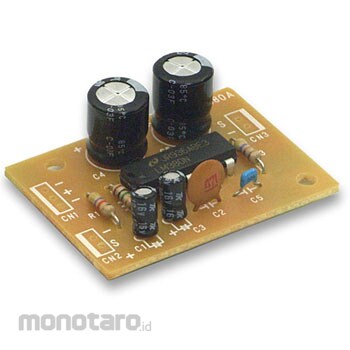

It is a speaker amplifier using a dedicated IC, LM380. The voltage gain is about 50 times more affordable and can be widely used for experiments and embedding.
