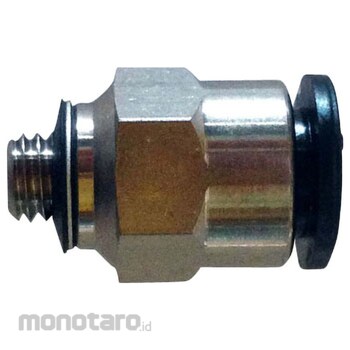

KOGANEI Quick Fitting Mini Type Straight
#Grup produk P110543477
Spesifikasi
| Shape | Straight |
|---|---|
| Overall Length (mm) | 17 |
| Suitable fluid | Air |
| Dimension L (mm) | 14 |
| Maximum Operating Pressure (MPa) | 0.9 |
| Connector Thread | M5X0.8 |
| Connector Thread Type | M |
| Dimension A (mm) | 3 |
| Dimension B (mm) | 17 |
| Dimension C (mm) | 11.7 |
| Dimension H (mm) | 10 |
| Dimension R (mm) | M5x0.8 |
| Dimension X (mm) | 11.8 |
| Dimension Y (mm) | 3.6 |
| Maximum Vacuum Pressure (kPa) | -100 |
| Operating Temperature Range (°C) | 0 to 60 |
| Recommended Tube | Nylon Tube/Urethane Tube |
| Suitable Tube Outer Diameter (mm) | 6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A small quick joint that enables small pitch and space saving.
