No optical axis adjustment is required, response time is fast, and excellent repeatability. The 2-optical axis type can detect the deceleration/stop position of a tracked trolley of a stacker crane with a single sensor. EMC Directive Compliant Product
Operation Mode : Switching by control line (1-beam type : peach, 2-beam type : peach or purple); Light-ON operation : Connect the control line to +V side of the power supply (brown); Dimmable operation : Connect the control line to the 0V side (blue) of the power supply

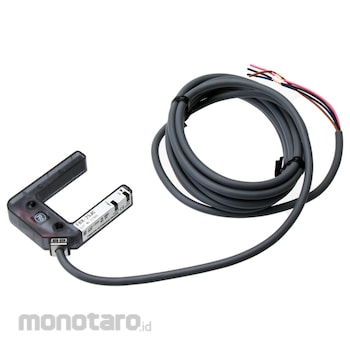

Hokuyo Automatic Photoelectric Sensor with Integrated Transmitter/Receiver Amplifier
#Grup produk P110536477
Spesifikasi
| Type | Built-in Amplifier |
|---|---|
| Protection Class | IP67 (IEC standard) |
| Head Shape | Groove |
| Output | NPN open collector output |
| Light Source | Infrared LED (880nm) |
| Current Consumption (mA) | 20 or less |
| Detection Distance (mm) | 25 |
| Detection Target | Opaque body |
| Light Color | Infrared |
| Power Supply Voltage (V) | DC12-24 (+ 10%, -10%, ripple 5% or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
