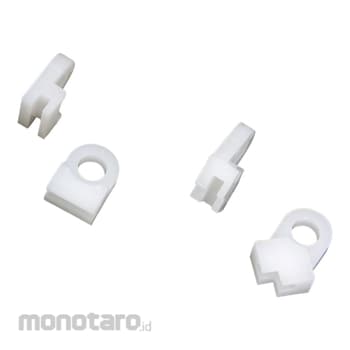

MAC8 Mounting Board Without Printed Board Holes
#Grup produk P110527150
Spesifikasi
| Material | Acetal copolymer milky white (UL94HB) |
|---|---|
| Dimension A (mm) | 1.55 |
| Dimension B (mm) | 0.95 |
| Operating Temperature Range (°C) | -40 to +85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable Circuit Board Thickness (mm) | 1.6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It is a product that can be fixed by fitting it in when there is no space for mounting holes in the printed circuit board such as surface mount board and high density mount board. For large printed circuit boards, insert the SG series next to it. The distance between the chassis (base) and the printed circuit board is 1.5 mm, but if you need more than that, you can secure any number of mm by putting the EP series underneath and floating it.
