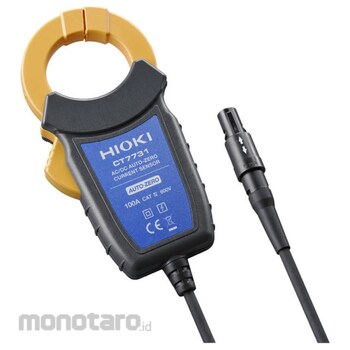

Hioki AC/DC Auto Zero Current Sensor
#Grup produk P110465337
Kondisi Barang:
Spesifikasi
| Length (mm) | 18 |
|---|---|
| Width (mm) | 58 |
| Height (mm) | 132 |
| Rated Voltage (V) | AC/DC600 (CAT IV) (maximum distance to ground) |
| AS ONE Part Number | 64-3413-44 |
| Cable Length (m) | 2.5 |
| Clamp Diameter (mm) | 33 |
| Dimensions (WxHxD) (mm) | 58x132x18 |
| Frequency Band (kHz) | DC to 5(-3dB) |
| Measuring Current (A) | AC/DC 100 |
| Phase accuracy | ± 1.8 deg. (Representative) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The measurement display unit allows you to check the measured values on-site without zero deviation even in locations with temperature changes.Memo high and logger 4 outputs depending on the application (used in conjunction with the display unit). Waveform output, RMS value output, peak output, frequency output.
Warning
- The manual for determining whether or not the product is in compliance can be downloaded from the manufacturer's website. Please check the manufacturer's website for details. - The product specifications, including optional items, are intended for domestic use. For products with a calibration certificate, the certificate will be issued in Japanese.
