The E7800 Motorized Potentiometer is typically used as an interface between increase/decrease relay contacts (or push buttons) and a device requiring control by an external potentiometer (e.g. the speed trim of an electronic governor).
All three wires of the potentiometer are directly accessible on external connection terminals, thus providing the best possible flexibility for almost any application.
A special version of the E7800 with DC voltage output is also available. The DC output voltage follows the position of the potentiometer. The design of the E7800 ensures that the potentiometer will “remember” its position although supply is lost.

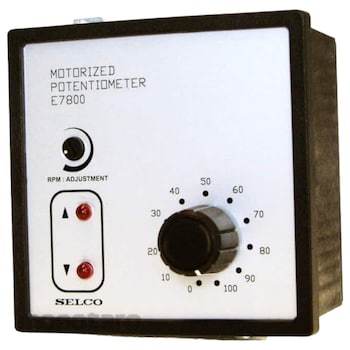

SELCO Motorized Potentiometer
#Grup produk P110459202
Spesifikasi
| Voltage Range | AC: 90 - 120% , DC: 75 - 125% |
|---|---|
| Consumption | AC: 2.5 VA, DC: 2W |
| Coast Time | Zero |
| Operating Temperature (°C) | -15 to 70 |
| Dielectric Test | 2kV, 50Hz, 1minute |
| Approvals | CSA, UL component recognition |
| Burn-In | 50 hours before _x001F_nal test |
| Dimensions (HxWxD) (mm) | 96x96x80 |
| EMC/CE | According to IEC/EN 61000-6-1/2/3/4 |
| Panel Cut Out (HxW) (mm) | 92x92 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
For products for which delivery dates are to be confirmed each time, we display a tentative delivery date because we need to confirm the delivery date with the supplier each time an order is placed, including the production status.After placing an order, we will confirm the delivery date with the supplier, and depending on the number of days required for delivery, we may ask you whether you would like to continue with the order.
Please check the details in the information we will send you at a later date.
Feature
Features:Sealed wire wound potentiometer
Built-in dust seal
Low speed motor for accurate control
High drive capability
Resistance from 100 to 10 kohm
Large size knob for manual control
LED indication of turn direction
Optional programmable RPM
AC or DC supply
