This is a constant flow valve with a fixed set flow rate for water.Even
if there are changes in the inlet (primary) pressure and outlet (secondary) pressure, the set flow rate will always be maintained as long as it is within the operating differential pressure range.

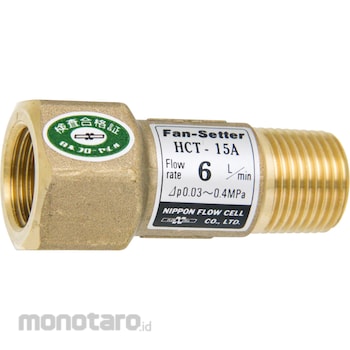

Fluid Industry Fixed Flow Rate Valve
#Grup produk P110459187
Spesifikasi
| Measurement Fluid | Liquid (equivalent to water) |
|---|---|
| Connection Port Size | 15A Screw |
| Material Main Body/Connection | Lead-free Brass |
| Material Interior | SUS304 |
| Material Strainer | PP |
| Accuracy | ±8 to 10% FS |
| Flow Direction | Horizontal/Vertical |
| Flow Rate Setting Range (L/minute) | 6 (operating differential pressure range 0.03 to 0.4 MPa) |
| Maximum Operating Pressure (MPaG) | 1 |
| Operating Temperature Range (°C) | 0 to 100 |
