Ezviz Smart Home Siren Alarm

Operation Conditions -10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing)
Dimensions 70.0 × 25.4 mm ( 2.75 × 1.00 inch)
Net Weight 71 g
Package Size 95.5 × 80.5 × 98.5 mm (3.8 × 3.2 x 3.9 inch)
Power Supply Uses Micro USB, DC 5V / 1A
Power Consumption Max.3W
Communication Methods RJ45 interface network cable Wi-Fi 2.4 GHz ZigBee 3.0
Specifications - PIR Sensor
Model CS-T1C-A0-BG
Operation Conditions -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing)
Dimensions Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch)
Weight 92 g (3.2 oz) with package
Specifications - Home Getaway
Model CS-A3-A0-W
General
Operation Conditions -10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing)
Dimensions Φ 70.0 × 25.4 mm (Φ 2.75 × 1.00 inch)
Net Weight 71 g (2.5 oz)
Package Size 95.5 × 80.5 × 98.5 mm (3.8 × 3.2 x 3.9 inch)
Power Supply Uses Micro USB, DC 5V / 1A
Power Consumption Max.3W
Network
Communication Methods RJ45 interface network cable Wi-Fi 2.4 GHz ZigBee 3.0
Communication Distance Wi-Fi (2.4 GHz) < 200 m ZigBee 3.0 < 200 m
Specifications - PIR Sensor
Model CS-T1C-A0-BG
General
Operation Conditions -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing)
Dimensions Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch)
Package Size 92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch)
Weight 92 g (3.2 oz) with package
Detection
Detection Type Passive infrared (PIR)
Detection Distance Up to 7 m / 23 ft
Detection Angle 90° horizontal, 90° vertical
Recommended Installation Height 1.8 to 2.5 m for wall-mounted installation
Pet-Proof Detection Requires using the pet shield and an installation

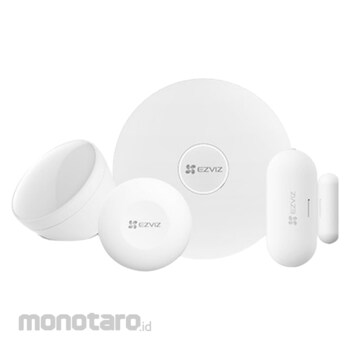

In The Box
- A3 Home Gateway
- Power Adapter for A3
- USB Cable for A3
- T1C PIR Sensor
- Pet Shield for T1C
- T2C Open/Close Sensor
- T3C Smart Button
- Doubled-sided Tape Strips (3)
- Regulatory Information
- Quick Start Guide
