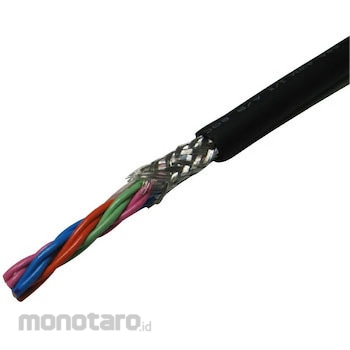

A twisted pair cable for moving parts that complies with UL and CSA standards.
It can be used as a signal transmission cable in electronic devices.
Has excellent flexibility and oil resistance.
As a measure against EMI, a braided shield is applied.
- For logarithmic (P) products, 2 cores are twisted together, so the number of cores is doubled.
Hanshin Electric Wire & Cable Movable Signal 30V Ul/Csa Standard with Shield
#Grup produk P110410577
Spesifikasi
| Color | Black |
|---|---|
| Type | FA cable |
| Rated Voltage (V) | 30 |
| AWG | 20 |
| Insulation Thickness (mm) | 0.25 |
| Allowable Current (A) | 7.6 |
| Approximate Mass (kg/km) | 52 |
| Color (insulator) | 1 sky |
| Conductor Configuration (pcs/mm) | 6/18/0.08 |
| Conductor Outer Diameter (Φmm) | 1.1 |
| Conductor Resistance at 20°C (ohm/km) | 37.9 |
| Identification | By color |
| Insulation Outer Diameter (mm) | 1.6 |
| Insulation Resistance at 20°C (MΩ.km) | 5 |
| Logarithm (P) | 1 |
| Number Of Cores (C) | 2 |
| Rated Temperature (°C) | 80 |
| Sheath Outer Diameter (mm) | 5.9 |
| Sheath Thickness (mm) | 1 |
