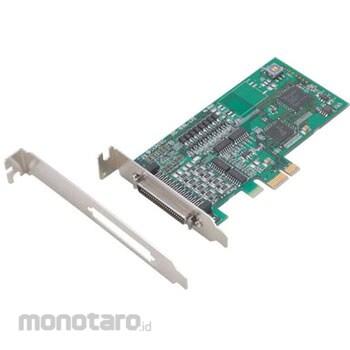

Contec Low Profile Pciexpress Compatible Isolated Digital I/O Board 16Ch/16Ch
#Grup produk P110355119
Spesifikasi
| AS ONE Part Number | 64-8863-95 |
|---|---|
| Number of Outputs | 16 points |
| Number of Input Points | 16 points |
| Suitable Connector | Miniature ribbon 50-pin |
| Bus Specifications | PCI Express |
| Circuit (input) | Optocoupler isolated input (compatible with sink output) |
| Operating Voltage (input) (V) | DC12~24 |
| Response Speed (input) (μs) | 200 (max.) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A PCI Express board that inputs and outputs digital signals to and from external devices. 12 to 24VDC optocoupler insulation type equipped with 16 optocoupler insulation inputs and 16 optocoupler insulation open collector outputs. Compatible with Low Profile size slots, and also supports standard size slots by exchanging the attached bracket.
