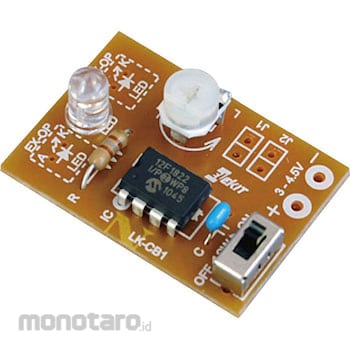

An LED lighting board kit that allows you to easily adjust the LED brightness and blinking interval.
One red LED (Ø5mm) is attached.
A small board that is easy to install.
Up to 3 LEDs of the same model number can be installed.
Select and assemble one of the four modes of dimming, blinking A, blinking B, and random blinking.
Dimming: Adjust the brightness with the volume Blinking A: Blinks with a snap, adjusts the blinking interval with the volume Blinking B: Blinks with a jiwajiwa, adjusts the blinking interval with the volume Random blinking: Bright and dark like the fluctuation of a candle flame Changes irregularly
- You can increase the number of LEDs to 3, but use LEDs with the same emission color and the same model number. If you install it by mixing different emission colors, it will not light up properly.
- You can change the emission color to your liking just by replacing the LED, but when replacing it with a white or blue LED with a high forward voltage, use 4.5V as the power supply.
ELEKIT Led Dimming/Flashing Kit
#Grup produk P110314398
Spesifikasi
| Type | Craft kit |
|---|---|
| Current Consumption (mA) | About 15 (maximum) |
| Recycled Paper Use Mark | Conformity |
| Board Dimensions (mm) | 25x35 |
| Power Supply Voltage (V) | DC3-4.5 (stabilization required) |
