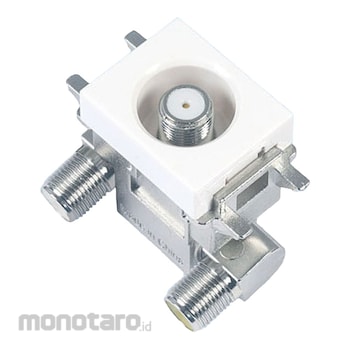

DX ANTENNA Small Series Unit Middle
#Grup produk P110304027
Spesifikasi
| Type | Terminal and movable input/output terminals |
|---|---|
| Included Accessories | Protective cap |
| Dimensions (HxWxD) (mm) | 22x44x36 |
| Frequency band (MHz) | 10~2610 |
| Applicable Frequency | CS2610MHz, BS, CATV, UHF, VHF, FM |
| Coupling Loss (dB) | (10-76MHz) within 10.5 ± 1.0, (76-770MHz) within 10.5 ± 1.0, (770-1489MHz) within 10.5 ± 1.5, (1489-2150MHz) within 10.5 ± 2.0, (2150-2610MHz) within 12.0 ± 3.0 |
| Input Impedance (ohm) | 75 (F type) |
| Insertion loss (db) | (10-76MHz) 1.5 or less, (76-770MHz) 1.3 or less, (770-1489MHz) 1.9 or less, (1489-2150MHz) 3.0 or less, (2150-2610MHz) 3.5 or less |
| Output Impedance (ohm) | 75 (F type) |
| Reverse Coupling Loss (dB) | (10-76MHz) 17 or more, (76-770MHz) 20 or more, (770-1489MHz) 18 or more, (1489-2150MHz) 15 or more, (2150-2610MHz) 15 or more |
| Voltage Standing Wave Ratio | (10-76MHz) 2.5 or less, (76-770MHz) 1.8 or less, (770-1489MHz) 2.0 or less, (1489-2150MHz) 2.0 or less, (2150-2610MHz) 2.5 or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- The capacity of the energized terminal is DC15V/0.8A or less or AC30V/1A or less.
