The touch tube is coiled and is ideal for expandable piping. The small diameter spiral part is effective for piping in narrow spaces. Excellent flexibility. It has a very small bending radius and is easy to handle. Excellent mechanical strength, especially abrasion resistance. Excellent water and cold resistance. It has excellent oil resistance and is ideal for air piping in factories. Very lightweight.
Pneumatic/instrumentation control equipment, etc.

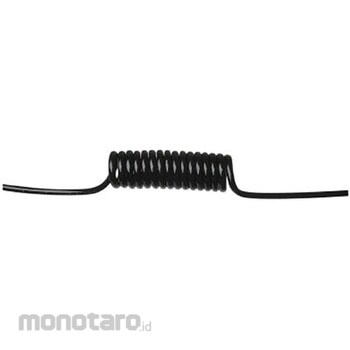

CHIYODA TSUSHO Touch Spiral Tube Tps Series
#Grup produk P110277033
Spesifikasi
| Color | Black |
|---|---|
| Suitable fluid | Compressed air, water |
| Maximum Operating Pressure (MPa) | (Compressed air) 0.8; (Water) 0.3 |
| Dimension C (mm) | 200 |
| Operating Temperature Range (°C) | (Compressed air) -5 to 60 (Water) 0 to 40 |
| Dimensions d (mm) | Φ38 |
| Inner Diameter (Φmm) | 4 |
| Material (Main Unit) | Polyurethane |
| Operating Vacuum Pressure (kPa) | -100 |
| Outer Diameter (φmm) | 6 |
| Spring Outer Diameter (mm) | 38 |
| Used Tube | TE-6 |
