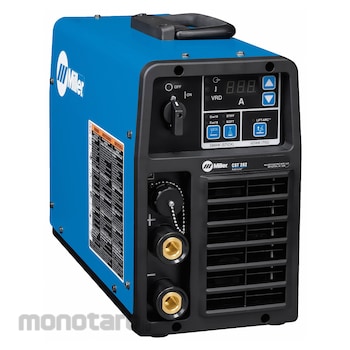

MILLER ELECTRIC Stick Welders
#Grup produk P110222811
Spesifikasi
| UNSPSC | 23171508 |
|---|---|
| Includes | 6ft Power Cable |
| Overall Width (inch) | 8 |
| Overall Height (inch) | 13.5 |
| Phase | Single-/Three-Phase |
| Cable Connection Type | Tweco-Style |
| Input Frequency (Hz) | 50/60 |
| Input Voltage (V) | 208; 220/230/240; 380/400/440; 460/480; 575 |
| Maximum Amperage (Stick) (A) | 280 |
| Maximum Amperage (TIG) (A) | 280 |
| Minimum Amperage (Stick) (A) | 5 |
| Minimum Amperage (TIG) (A) | 5 |
| Open Circuit Voltage (V) | 103 DC |
| Overall Depth (inch) | 18.5 |
| Plug Type | Bare Leads |
| Power Cord Length (ft) | 6 |
| Process | Stick Welding (SMAW); TIG Welding (GTAW) |
| Rated Output @ Duty Cycle (Stick) (A) | 150 @ 26V, 100% (1-Phase) 200 @ 28V, 100% (3-Phase) 200 @ 28V, 50% (1-Phase) 280 @ 31.2V, 35% (3-Phase) |
| Rated Output @ Duty Cycle (TIG) (A) | 150 @ 16V, 100% (1-Phase) 200 @ 18V, 100% (3-Phase) 200 @ 18V, 50% (1-Phase) 280 @ 21.2V, 35% (3-Phase) |
| Remote Connection Type | 14-Pin (Miller) |
| TIG Arc Start Feature | Lift Arc Start |
| Welder Series | CST 282 |
| Welding Power Source Type | CC |
| polarity | DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Miller CST comes with a power source and integrated carrying handle for portability.
Feature
Effective Input Current :12 A @ 440V AC (Three-Phase); 12.7 A @ 460V AC (Three-Phase); 13.5 A @ 400V AC (Three-Phase); 17.5 A @ 460V AC (Three-Phase); 18 A @ 440V AC (Three-Phase); 19.8 A @ 400V AC (Three-Phase); 22.8 A @ 230V AC (Three-Phase); 23.5 A @ 208V AC (Three-Phase); 34 A @ 230V AC (Three-Phase); 36 A @ 208V AC (Three-Phase)
