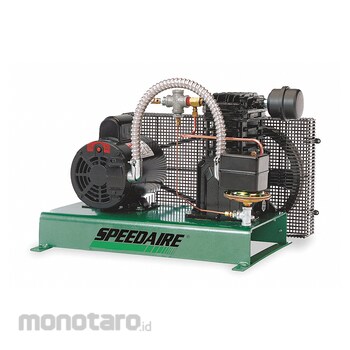

SPEEDAIRE Stationary Electric Air Compressors
#Grup produk P110222796
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 40151601 |
|---|---|
| Standards | CSA; UL Listed |
| Overall Length (inch) | 22.5 |
| Finish | Powder Coated |
| Includes | Oil Sight Glass; Pressure Gauge; Pressure Safety Valve |
| ASME Tank | No |
| Compressor Package Type | Base Model |
| Control Type | Pressure Switch |
| Current Rating (A) | 3.9; 9.0 to 7.5 |
| Cylinder Material | Cast Iron |
| Free Air Flow Rate @ Maximum Pressure (cfm) | 12.3 |
| Frequency (Hz) | 60 |
| Inlet Size (inch) | 1/2 |
| Input Voltage (V) | 200-240 AC; 480 AC |
| Lubrication Type | Splash Lubricated |
| Maximum Operating Pressure (psi) | 40 |
| Maximum Speed (rpm) | 1225 |
| Number of Stages | 1 |
| Off Pressure Switch Setting (psi) | 40 |
| On Pressure Switch Setting (psi) | 30 |
| Outlet Gender | Female |
| Outlet Size (inch) | 1/2 |
| Outlet Type | NPT |
| Output Power (HP) | 3 |
| Overall Height (inch) | 14.75 |
| Overall Width (inch) | 15.5 |
| Phase | Three |
| Pump Location | Base Mount |
| Pump Oil Capacity (fl oz) | 8 |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Sound Level (dBA) | 79 |
| Tank Style | Tankless |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fire sprinkler stationary electric air compressors are permanently installed and integrated into a building's pressurized fire sprinkler system. These compressors must meet the specifications needed for fire protection applications.
