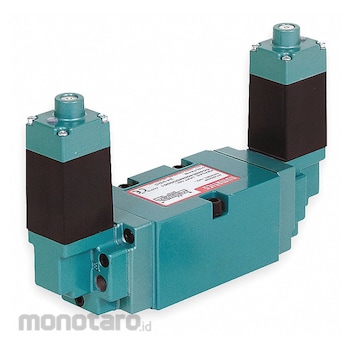

NUMATICS Solenoid Air Control Valves
#Grup produk P110221955
Spesifikasi
| UNSPSC | 40141605 |
|---|---|
| Standards | CE; CSA |
| Overall Length (inch) | 10-3/8 |
| Voltage (V) | 24 DC |
| Overall Width (inch) | 2-9/16 |
| Body Style | Body Ported |
| Coefficient of Volume | 5.5 |
| Electrical Connections | DC Plug-In with Light |
| Maximum Flow (cfm) | 253 |
| NEMA Classification | NEMA 4 |
| Operational Pressure Range (psi) | 20 to 150 |
| Overall Height (inch) | 2-3/16 |
| Override | Non-Locking Flush |
| Pilot Port Size (inch) | 1/2 NPT |
| Pilot Pressure (psig) | 15 to 125 |
| Pipe Size (inch) | 1/2 |
| Power Consumption (W) | 4 |
| Shifting Technology | Spool & Sleeve |
| Valve Actuator/Return | Solenoid Air Pilot / Solenoid Air Pilot |
| Valve Series | Mark 55 Series |
| Valve Vacuum Range (in.Hg) | 0 to 28 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These Numatics solenoid air control valves control air release in pneumatic systems. Solenoid air control valves shift by means of an electrical solenoid.
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
