RULAND MANUFACTURING Oldham Couplings
#Grup produk P110215954
Spesifikasi
| Standards | Conflict Minerals Compliant; ISO 9001:2015; REACH Compliant; RoHS3 Compliant |
|---|---|
| Application | Applications With High Parallel Misalignment (Up to 10% of the Coupling OD) |
| Features | High Torsional Stiffness; Highly Customizable Coupling; Three-Piece Design; Zero-Backlash |
| Minimum Operating Temperature (°F) | -10 |
| System of Measurement | Inch |
| Angular Misalignment (°) | 0.5 |
| Disc Finish | Plain |
| For Misalignment Type | Angular; Axial; Parallel |
| Full Bearing Support Required | Yes |
| Maximum Speed (rpm) | 4500 |
| Mechanical Fuse Break | Yes |
| Zero Backlash | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

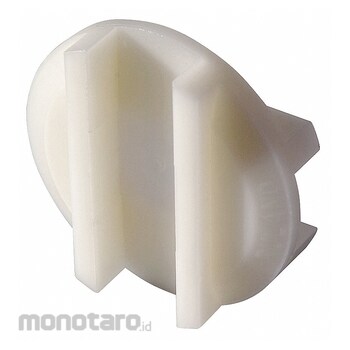

Oldham coupling discs feature slots on each side which accept the tenons from compatible hubs to complete the coupling system. The discs break away cleanly when maximum torque is exceeded, acting as a mechanical fuse to protect sensitive equipment.
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
