POWER DRIVE Chain Couplings
#Grup produk P110206752
Spesifikasi
| Number of Teeth | 20 |
|---|---|
| UNSPSC | 31163002 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°F) | -25 |
| System of Measurement | Inch |
| Axial Motion (inch) | 0.06 |
| Bore Diameter (inch) | 2-7/16 |
| Bore Type | Split Taper Bushing |
| Chain Number | 60 |
| Coupling Overall Length (inch) | 4-7/8 |
| For Bushing Size | B |
| For Chain Pitch (inch) | 3/4 |
| For Cover Part Number | AL60 |
| Horsepower @ 100RPM (HP) | 13.48 |
| Horsepower at Maximum RPM (hp) | 46 @2000 |
| Hub Diameter (inch) | 3-7/8 |
| Hub Material | Steel |
| Length Through Bore (inch) | 2-3/16 |
| Maximum Angular Misalignment (°) | 1 |
| Outside Diameter with Chain (inch) | 5.625 |
| Outside Diameter with Cover (inch) | 6.375 |
| Parallel Misalignment (inch) | 0.005 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

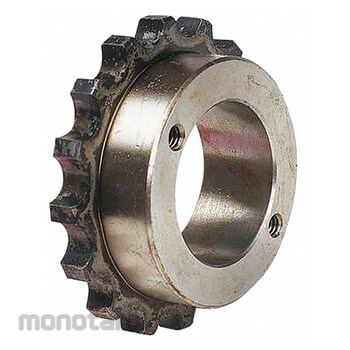

Bushed bore chain coupling sprockets mount directly to compatible shaft bushings, which securely accept motor or equipment shafts without the need for set screws. Two chain coupling sprockets join together by a matched coupling chain.
