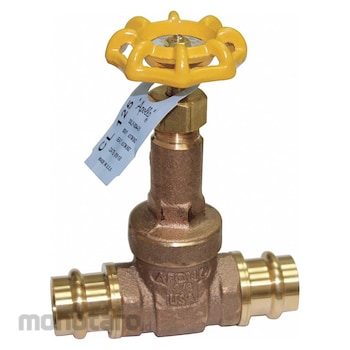

Apollo Gate Valve
#Grup produk P110190576
Sebelum PPN:
Rp3.199.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141613 |
|---|---|
| Overall Length (inch) | 9.5 |
| Body Material | Bronze |
| Seal Material | EPDM |
| Handle Material | Malleable Iron |
| Bonnet Material | Bronze |
| Bonnet Style | Screw-In |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Type | Press x Press |
| Connection Type - Side 1 | Press |
| Connection Type - Side 2 | Press |
| For Media | Water |
| Handle Type | Wheel |
| Max. Pressure (CWP) (psi) | 200 |
| Max. Pressure (Steam) (psi) | 200 |
| Maximum Operating Temperature (°F) | 250 |
| Media Temperature Range (°F) | 0 to 250 |
| Minimum Operating Temperature (°F) | 0 (Zero) |
| NSF Certifications for Food and Drinking Water | NSF 61 |
| Seat Material | Bronze |
| Standards | ANSI; ARRA; NSF |
| Stem Material | Bronze |
| Stem Type | Non-Rising |
| Valve Series | 30 |
| Wedge Material | Bronze |
| Wedge Style | Solid |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Non-rising-stem bronze gate valves for potable water, also known as insider screw valves, have stems that do not extend when the valve is opened, and are used in areas with limited space.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
