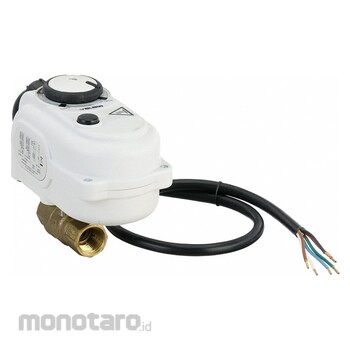

BONOMI Electrically Actuated Ball Valve
#Grup produk P110189914
Sebelum PPN:
Rp9.199.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141607 |
|---|---|
| Overall Length (inch) | 6.14 |
| Body Material | Brass |
| Ball Material | Brass |
| 3-A Compliance | Not Rated |
| Actuator Enclosure Material | Technopolymer |
| Actuator Maximum Torque (inch-lbs) | 89 |
| Actuator Operation | 90° |
| Ball Port Style | Full Port |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Water |
| IP Rating | IP65 |
| Max. Pressure (CWP) (psi) | 600 |
| Max. Pressure (Combustible Gas) | Not Rated |
| Max. Pressure (Steam) (psi) | 35 |
| Maximum Current (A) | 4 |
| Maximum Media Temperature (°F) | 366 |
| Media Temperature Range (°F) | -4 to 366 |
| Minimum Media Temperature (°F) | -4 |
| NEMA Enclosure Rating | 4 |
| NSF Certifications for Food and Drinking Water | NSF 61 |
| Seat/Seal/Stem Material | PTFE/PTFE/Brass |
| Standards | NSF 372; UL |
| Stem Type | Blowout Resistant |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 250NLF |
| Valve Ways | 2-Way |
| Voltage (V AC) | 110 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Brass electrically-actuated ball valves are made of a corrosion-resistant copper and zinc alloy less prone to cracking than plastic.
