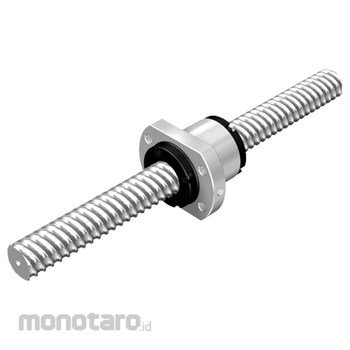

THK Precision Ball Screw with Rail
#Grup produk P110174897
Sebelum PPN:
Rp4.099.900 - Rp6.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Lubrication and Dust Preventioin Accessories | with End Seal + Side Seal + Inner Seal + Metal Scrapper |
|---|---|
| Rolled Shaft | Yes |
| Screw Shaft Outer Diameter d (mm) | 20 |
| Lead Ph (mm) | 20 |
| Ball Center to-center Diameter (mm) | 20.75 |
| Axial Clearance (mm) | 0.1 |
| Basic Load Rating Ca-C₀a (kN) | 7.7-22.3 |
| DN Value | 70000 |
| Flange Diameter D₁ (mm) | 62 |
| Lubrication Hole N₁-A | 5-M6 |
| Nut Dimensions B₁ (mm) | 27.5 |
| Nut Dimensions H (mm) | 10 |
| Nut Dimensions PCD (mm) | 4.5x7.5x5.3 |
| Outer Diameter d (mm) | 39 |
| Overall Length L₁ (mm) | 15 |
| Rigidity K (N/µm) | 210 |
| Screw Shaft Inertial Moment (kg.m²/mm) | 1.23x10⁻⁷ |
| Seal M₁ (mm) | 3.5 |
| Thread Minor Diameter dc (mm) | 17.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Using an end-cap method, these models achieve stable motion in a high-speed rotation.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
