YUKEN E Series Pilot Relief Valves EDG-01 Type
#Grup produk P110164818
Spesifikasi
| Minimum Flow (L/minute) | 0.3 |
|---|---|
| Pressure Adjustment Range (MPa) | 1.2 to 24.5 |
| Applicable Control | General Use |
| Coil Resistance (ohm) | 10 |
| Design Number | 51 |
| Hysteresis | 3% or less |
| Maximum Flow Rate (L/minute) | 2 |
| Maximum Operating Pressure (MPa) | 24.5 |
| P-Line Orifice | Without Orifice (Standard) |
| Rated Current (mA) | 950 |
| Repeatability | 1% or less |
| Safety Valve | Without Safety Valve |
| Series Number | ED (Proportional Electro Hydraulic Pilot Relief Valve) |
| T-Line Orifice | T11 |
| Type of Mounting | Sub-Plate Mounting |
| Valve Size | 01 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

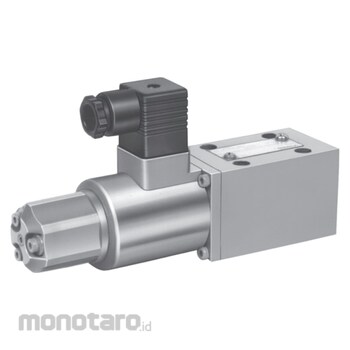

This valve consists of a small DC solenoid and a direct-acting relief valve. It serves as a pilot valve for a low flow rate hydraulic system or a proportional electro-hydraulic control valve and controls the pressure in proportion to the input current. Note that this valve is used in conjunction with the applicable power amplifier.
