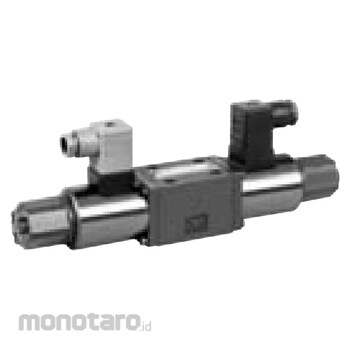

YUKEN Electro-Hydraulic Control Valve EDFG-01 Type
#Grup produk P110164757
Spesifikasi
| Max. Tank Line Back Pressure | 14 |
|---|---|
| Hystersis | 5% or less |
| Coil Resistance (ohm) | 10.8 |
| Design Number | 50 |
| Direction Design of Flow Number | Metre -In, Metre-Out |
| Frequency Response Gain (50% ±25%) (Hz) | 25 (-3dB) |
| Frequency Response Phase (50% ±25%) (Hz) | 20 (-90°) |
| Maximum Flow Rate (L/minute) | 30 |
| Maximum Operating Pressure (MPa) | 25 |
| Rated Current (mA) | 1100 |
| Rated Flow (L/minute) | 30 |
| Repeatability | 1% or less |
| Spool Type | 3C2 |
| Step Response (Typical Rating 0 - 100%) (ms) | 100 |
| Type of Mounting | Sub-plate Mounting |
| Valve Size | 01 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These valves are well accepted by industrial users as shifting time adjustable type shockless valves. By employing the basic design concept of the “G series solenoid operated directional valves”, we have been successful developing the shifting time adjustable shockless valves with high performance which makes the speed setting possible at any high speed operation. In combination with the newly developed digital amplifiers, the further enhancement of maneuverability and repeatability of the valves can be realized.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
