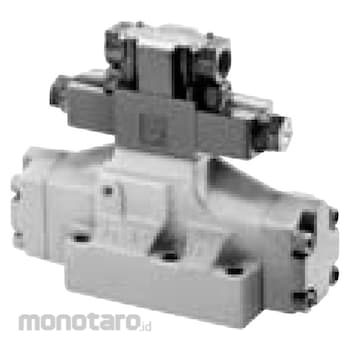

YUKEN Pilot Operated Solenoid Valve DSHG-01 Type
#Grup produk P110164571
Spesifikasi
| Minimum Required Pilot Pressure (MPa) | 1.0 |
|---|---|
| Maximum Changeover Frequency minute-1 (cycle/minute) | 120 |
| Coil Type | D24 |
| Design Number | 14 |
| Drain Connection | External Drain |
| Maximum Flow Rate (L/minute) | 40 |
| Maximum Operating Pressure (MPa) | 21 |
| Maximum Pilot Pressure (MPa) | 21 |
| Maximum T-Line Back Pressure (MPa) | 16 |
| Number of Valve Positions | 2 |
| Pilot Connection | Internal Pilot |
| Spool Spring Arrangement | Spring Offset |
| Spool Type | 2 |
| Type of Electrical Conduit Connection | Push-in Connector with Indicator Light |
| Valve Size | 01 |
| Valve Type | Standard Type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energised the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
