The AMSE controller is used to drive ASE series AC servo motor driven pumps. With an optimal design for the ASE pumps, the controller can maximize the pump performance. The AMSE controller is included with the ASE series pumps.
Additional Function: Resolver Signal Fault, Overspeed, Speed, Deviation Large, Z-Phase, Tunning Incomplete

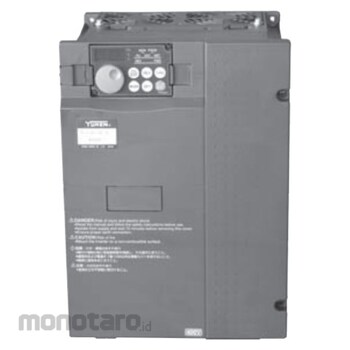

YUKEN Controler AMSE Type
#Grup produk P110162670
Sebelum PPN:
Rp74.999.900 - Rp129.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | 0 to +50 (Non-Freezing) |
|---|---|
| Control Method | Vector Control, Sensorless |
| Atmosphere | Indoors (Without Corrosive GAS,Flammable GAS,Oil Mist,Dust And Dirt etc) |
| Vibration (m/s²) | 5.9 or less |
| Power Supply Voltage AC (V) | 400 |
| Ambient Humidity (RH) | 90% Max. (No Condensing) |
| Command Signal Input Voltage (VDC/Rated) | 0 to +5 |
| DB (Dynamic Brake) | External Option |
| Digital Monitor | 1ch,(FM or Open Collector) |
| Function Selection | Combination (Single Operation Allowed) |
| Monitor Output Voltage (VDC) | 1ch, 0 to +10 |
| Parameter Number | 00：Standard |
| Permissible Frequency Fluctuation | Within ±5% |
| Short-Circuited (mA) | 4-6 |
| Voltage At Opening (VDC) | 21-27 |
| Voltage/Frequency AC (V/Hz) | 323-528/50/60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
