Drive power source and signal are separate.
The valve is actuated by operating a built-in switch using a very small current signal (about 10 mA) when the solenoid is energised.
● A Direct Drive by a programmable controller is now possible.
As the valve can be actuated by a very small current, as we have mentioned, a Direct Drive is possible on the output circuit of the programmable controller or sequence controller.
● Simple construction and stable operation.
Since the valve is a direct type, the construction is quite simple. Also the solenoid is the well proven wet armature type, which can withstand contamination. Therefore a stable operation can be obtained.

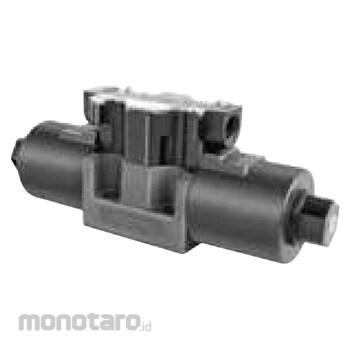

YUKEN Shockless & Electric Relay Incorporated Solenoid Valve T-S-DSG-03 Type
#Grup produk P110160937
Spesifikasi
| Valve Type | Shockless Type |
|---|---|
| Max. Flow (U.S.GPM) | 31.7 |
| Coil Type | D24 |
| Control Type | Electronic Relay Incorporated Type |
| Design Number | 50 |
| Max. T-Line Back Pressure (psi) | 2320 |
| Maximum Changeover Frequency minute-1 (cycle/minute) | 120 |
| Maximum Flow Rate (L/minute) | 120 |
| Maximum Operating Pressure (MPa) | 25 |
| Maximum Operating Pressure (psi) | 3630 |
| Maximum T-Line Back Pressure (MPa) | 16 |
| Number of Valve Position | 3 |
| Series Number | DSG |
| Spool Spring Arrangement | C |
| Supply Type of Signal Power | Internal Signal Power |
| Type | S |
| Valve Size | 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
