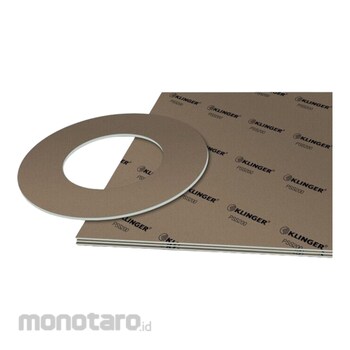

KLINGER Gasket Sheet
#Grup produk P110158066
Spesifikasi
| Thickness (mm) | 2 |
|---|---|
| Ignition loss (%) | <5 |
| Number of Stainless Steel Reinforcements | 1 |
| Material Tanged Stainless Steel | ASI 316 (L) |
| Basis Composition | Mica-based sealing material with a perforated 0.1 mm thick stainless steel reinforcement. |
| Compressibility ASTM F 36 J (%) | 15-23 |
| Density (g/cm³) | 2.1 |
| Maximum Gasket Load (MPa) | 80 |
| Maximum Temperature (°C) | 900 |
| Recovery ASTM F 36 J (%) | 32-42 |
| Stress relaxation DIN 52913, 50 MPa, 16 h/300°C (MPa) | 33 |
| Thickness Increase ASTM F 146, Oil IRM 903: 5 h/150°C (%) | 12 |
| Weight Increase (ASTM F 146, Oil IRM 903: 5h at 150°C) | 26 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
KLINGER®milam PSS engineered for highly demanding operating conditions. Featuring a high-temperature Mica-based material with perforated stainless steel reinforcement, KLINGER® milam PSS gaskets are specifically designed for hot, dry gas applications at up to 900 °C and 5 bar. Their outstanding chemical resistance also makes them suitable for a wide range of other applications. This product is also available as Milam H, a high-quality homogeneous mica sheet.
Fitur
Certificate : German LloydUlasan Produk
