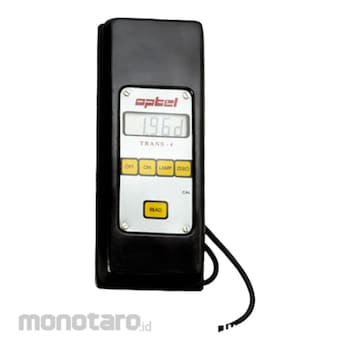

Trans-4V is a battery operated hand-held black and white transmission Densitometerwith build-in light source. It has achieved the accuracy and stability not so far offered in portable / field instruments. It’s size and shape makes it an ideal portable instrument for use laboratory.
The Trans-4V has its own light source and Trans-4E has an external sensor with 1 meter cable. It is used with an external light source, like a film viewer. Keypad controls for POWER, LAMP, ZERO and READ to set zero. Insert film and press Read to get optical density D. These easy to use compact instruments measure optical density of films mostly used for X-Ray films and printing / photography films. Trans-4 has a range of 0 to 4 D with accuracy of ± 0.01 D.
Technical Details
Trans-4V Trans-4(E)
Application Areas Measure optical density of::
X-Ray films for Radiography
Metallised films
Plastic films
Colour Response Black & White only
Light Source Built-in Needs external light source such as a film viewer
Battery Rechargeable NICD battery giving ~2000 readings 4 Penlite Cells
What's in the Box:
(1) small screw driver
(1) Carrying case
(1) Operating
(1) Set of batteries (incorporated in the unit)
Optel Densitometer
#Grup produk P110157021
Sebelum PPN:
Rp66.999.900 - Rp75.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimensions (LxWxD) (mm) | 190x78x55 |
|---|---|
| Operating Temperature (°C) | 10 to 50 |
| Zero Stability | ±0.02 D per 8 Hours Max |
| Accuracy | Better than ± 0.02 D |
| Measuring Length (throat depth) (mm) | 150 |
| Range | 0.00D to 4.00D |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
