Ihara Quality Control

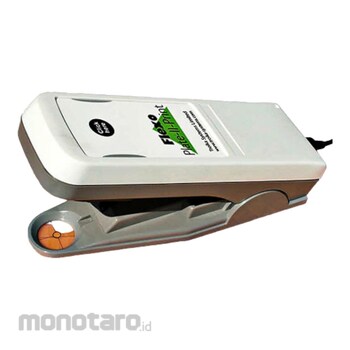

Flexo Plate-II-Print

With Flexo Plate-II-Print, dot measurement has never been so fast and easy. Save valuable production time by getting to the bottom of print problems with a click of a button.

Visually see and measure dot sizes on film/masks, printing plates and printed copy. End the finger pointing between prepress and platemaking and the printing department. Never has there been so much power packed into such a portable and easy-to-use solution for solving flexo printing problems.

Key Benefits of Flexo Plate-II-Print:

Proven on over 40 flexo plate materials.

Catch plate problems before they reach the press with oncoming plate inspection.

Perfect tool for fingerprinting the press

Generates a complete dot gain curve in minutes

Compares dot sizes on masks, plate and printed copy – all on a single graph in minutes.

Works on metal backed plate materials (letter press)

Hard copy and electronic reporting u Direct RIP interface.

Saves the image for archiving or e-mailing for further analysis.

Dot Evaluation

Halftone dots: 85 lpi - 175 lpi (35 - 70 lpcm)

Numeric % display

Dynamic graphic display

Screen angle / ruling calc.

Pos/Neg reading

±1% Accuracy over full range Imaging time: <1 sec.

Geometric Measurements

Value comparison

Numeric and graphical comparison between film readings, plate readings and print readings a
