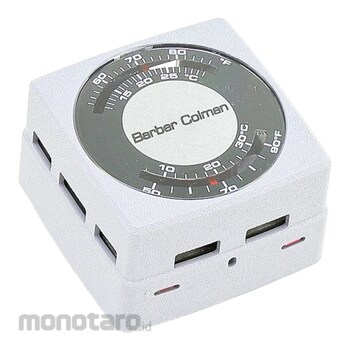

Schneider Electric Pneumatic Thermostats
#Grup produk P110129763
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 41112209 |
|---|---|
| Air Connection Outside Diameter (inch) | 1/4 |
| Air Consumption (scim) | 15.6 |
| Air Flow Output | High Volume |
| Application | Heat or Cool |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Cover Color | Gray |
| Differential Type | Adjustable |
| Fitting Connection (inch) | Barbed 3/16 |
| Includes | 20-693 Tubing Kit; Mounting Kit |
| Includes Cover | Yes |
| Key Features | Leakproof; O-Ring Sealed; Spring-Loaded Self-Closing Branch Gauge Tap |
| Manual Indexing Switch | No |
| Maximum Air Pressure (psig) | 30 |
| Maximum Control Temperature (°F) | 85 |
| Minimum Control Temperature (°F) | 55 |
| Mounting Direction | Horizontal; Vertical |
| Mounting Location | Wall |
| Number of Dials | Single |
| Number of Pipes | 2 |
| Overall Depth (inch) | 1-3/8 |
| Overall Height (inch) | 2-1/16 |
| Overall Width (inch) | 2-1/16 |
| Sensor Type | Bi-Metallic Spring |
| Temperature Scale | Celsius/Fahrenheit |
| Temperature Settings | Single Temperature |
| Thermostat Action | Direct |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These thermostats have a single setpoint to control heating and cooling systems at one temperature for basic temperature control in older schools, hospitals, and commercial buildings. Pneumatic thermostats regulate the temperature using compressed air for power.
