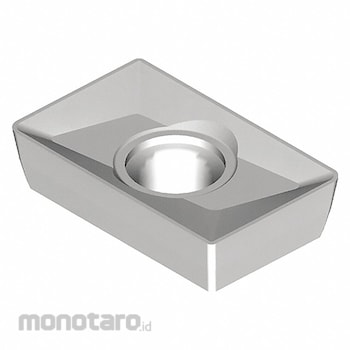

KYOCERA Parallelogram Indexable Milling Inserts
#Grup produk P110128542
Spesifikasi
| UNSPSC | 31160000 |
|---|---|
| Shape | Parallelogram |
| ISO Number | XPMT15T308 |
| Insert Style | XPMT |
| Manufacturer Grade | TN100M |
| Chip-Breaker | No |
| ANSI Code | XPMT15T308 |
| Insert Size | 15T308 |
| Clearance Angle (°) | 15 |
| Corner Radius (mm) | 0.8 |
| Cutting Application | Chamfering; Countersinking; Facing; Shouldering; Slotting |
| Cutting Direction | Neutral |
| Cutting Edge Length (mm) | 15.42 |
| Features | For Carbon/Alloy; Free-Cutting and Mold Steel; Tough Cermet with Improved Oxidation Resistance and Thermal Shock Resistance |
| Feed type | High |
| Finish - Machining | Bright (Uncoated) |
| For Toolholder | CM...; EM...; FM...-90RH |
| Hole Type | Countersunk Hole |
| Inscribed Circle (inch) | 3/8 |
| Insert Holding Type | Screw |
| Material - Machining | Cermet |
| Measurement System | Metric |
| Mounting Hole Dia. (mm) | 4 |
| Number of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Positive |
| Secondary Material Application | Aluminium, Brass, Bronze, Cast Iron, Copper, Non-Ferrous, Stainless Steel |
| Secondary Material Application ISO Code | K; M; N |
| Thickness (mm) | 3.97 |
| Through Hole Inside Dia. (mm) | 4 |
