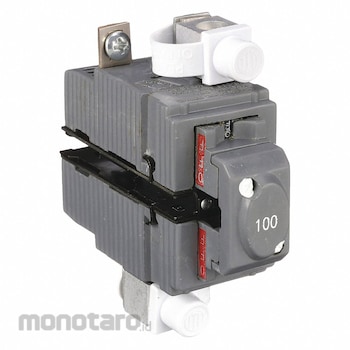

PUSHMATIC Obsolete Miniature Circuit Breakers for Panelboards & Load Centers
#Grup produk P110127862
Spesifikasi
| UNSPSC | 39121601 |
|---|---|
| For use with | Pushmatic and Bulldog Load Centers |
| Width (inch) | 1.5 |
| Length (inch) | 3.81 |
| AC Voltage Rating (V) | 120/240 AC |
| Amps (A) | 100 |
| Circuit Breaker Actuator | Push-to-Reset |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/Load Center Series | L250-PL14 |
| DC Voltage Rating | Not Rated |
| Depth (inch) | 3.53 |
| Frame Size | 100A/HACR |
| Max. AIR Rating (kA) | 10 at 120/240V AC |
| Max. Wire Size (AWG) | 4 |
| Maximum Operating Temperature (°F) | 250 |
| Min. Wire Size (AWG) | 14 |
| Minimum Operating Temperature (°F) | 0 |
| Number of Poles | 2 |
| Phase | Single |
| Series | UBIP |
| Standards | ETL Listed; UL Listed |
| Terminal Connection | Lug |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These miniature circuit breakers bolt into place in Pushmatic load centers. They interrupt currents when faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
