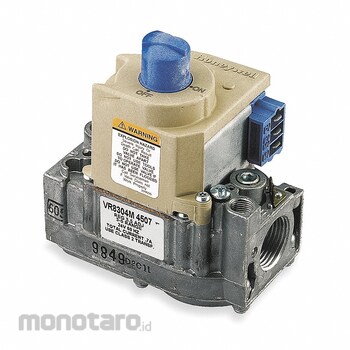

HONEYWELL Ignition Gas Valves
#Grup produk P110123422
Spesifikasi
| UNSPSC | 40141605 |
|---|---|
| ANSI Rating | ANSI Z223.1 NFPA No. 54 |
| Compatible Fuel Type | Liquid PropaneNatural Gas |
| Current (A) | 0.5 |
| Electrical Connections | Quick Connect Terminal |
| Flow Direction | Straight-Thru |
| Fuel Conversion Kit Included | Yes |
| Inlet/Outlet Connection Gender | Female |
| Inlet/Outlet Connection Size (inch) | 3/4 |
| Inlet/Outlet Connection Type | NPT |
| Installation Orientation | Vertical |
| Manufacturer Series | VR8304 |
| Max. Heating Capacity (BtuH) | 370000 |
| Maximum Operating Temperature (°F) | 175 |
| Mechanical Thermostat Included | No |
| Minimum Operating Temperature (°F) | -40 |
| Number of Stages | Dual |
| Opening Characteristic | Fast Opening |
| Overall Depth (inch) | 2-11/16 |
| Overall Height (inch) | 5-3/8 |
| Overall Length (inch) | 4-1/16 |
| Pilot Generator Kit Included | No |
| Pilot Type | Intermittent Pilot |
| Pressure Regulator Included | Yes |
| Pressure Tap Connection Size (inch) | 1/8 |
| Pressure Tap Connection Type | NPT |
| Pressure Tap Inlet Included | Yes |
| Pressure Tap Outlet Included | Included |
| Reducer Bushings (inch) | 3/4x1/2 |
| Reducer Bushings Included | Yes |
| Sensing Type | Flame Sensor |
| Side Taps Included | No |
| Voltage (V) | 24 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Intermittent pilot gas valves feature a pilot light that is off when not in use and runs only during startup to ignite the main burner. This provides the consistent ignition of a standing pilot while eliminating the fuel burn normally required to maintain the pilot.
