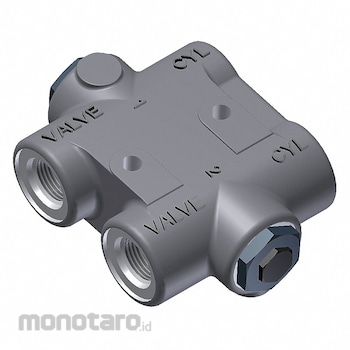

PARKER GRESEN Hydraulic Check Valves
#Grup produk P110122229
Spesifikasi
| UNSPSC | 40141608 |
|---|---|
| Actuation Mechanism | Pressure |
| Body Material | Cast Iron |
| Includes Seals | Seals Not Included |
| Inlet Connection Size (inch) | 1/2 |
| Inlet Connection Type | NPT |
| Maximum Flow Rate (GPM) | 25 |
| Maximum Operating Temperature (°F) | 200 |
| Maximum Pressure (psi) | 2000 |
| Minimum Operating Temperature (°F) | -40 |
| Mounting | Inline |
| Outlet Connection Size (inch) | 1/2 |
| Outlet Connection Type | NPT |
| Overall Height (inch) | 3.76 |
| Overall Length (inch) | 5.31 |
| Overall Width (inch) | 1.78 |
| Reverse Free Flow | Reverse Free Flow |
| Series | LO |
| Valve Type | Check |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Double pilot-operated check valves control outlet flow in two directions for isolating or locking a cylinder. Fluid flow is reversed when pilot pressure is applied to either side of the valve.
