IP65, switch function (NPN or PNP open collector), analog output (optional), 6-stage filter setting (none, 25/250 ms, 2.5/5/10 s), loop check, display, Analog output scaling, filter, key lock, hold, one-touch zero adjustment
Applications
This digital pressure gauge with a highly reliable semiconductor deposition type pressure sensor built in can be used to monitor and control hydraulic and water pressure lines in various industrial machines and equipment. It has a digital display, pressure switch and transmitter all integrated in a compact package, and is equipped with loop check, scaling functions, etc.
Comparator Output
NPN open collector x 2 outputs/Output capacity 30V DC 80mA DC max.
Response speed: 5ms or less,
Dead band: Variable in hysteresis mode, fixed at 1%FS in window comparator mode
Operation indicator: Red LED (lights up when ON)

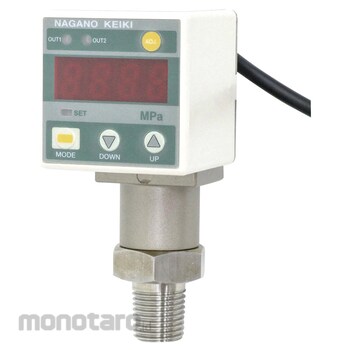

NAGANO General Industrial Digital Pressure Gauge Model: GC61
#Grup produk P110109787
Spesifikasi
| Accuracy | ±(1%FS+1digit)at 23℃ |
|---|---|
| Pressure Range (MPa) | 0–50 |
| Measurement Fluid | Gas/Liquid |
| Remarks | Output: 4 to 20mA |
| Mounting Method | Vertical Mounting |
| Power Supply | 15 to 24V DC ±10% (with 4 to 20mA DC output) |
| Case Construction | IP65 (with air vent hole) |
| Character Height (mm) | 8 |
| Display Method | 4-digit LED digital |
| Display Update Cycle (ms) | 200 |
| Maximum Allowable Pressure (kgf/cm²) | 1.5 times the pressure range |
| Temperature coefficient | ±0.1%FS/℃ |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Sample image (please check the specifications of each product number for details)Use
Scaling/display value, loop check/comparator output, filter/none, 25ms, 250ms, 2.5s, 5s, 10s (time constant), error display/overpressure, comparator overcurrent, out-of-range pressure during zero adjustment, hold/peak value, bottom value display, other/one-touch zero adjustment, key lockUlasan Produk
