Mason Floor Mount Vibration Isolators
#Grup produk P110106328
Spesifikasi
| UNSPSC | 23153130 |
|---|---|
| Width (inch) | 4-3/4 |
| Height (inch) | 2-1/2 |
| Capacity Range (lb) | 0 to 1000 |
| Color Mark | White |
| Deflection Range (inch) | 0 to 0.15 |
| Dimension A (inch) | 3 |
| Dimension B (inch) | 4.75 |
| Dimension C (inch) | 1-15/16 |
| Dimension D (inch) | 2-3/8 |
| Dimension E (inch) | 1 |
| Dimension F (inch) | 1.5 |
| Dimension G (inch) | 7/16 |
| Dimension H (inch) | 1-7/8 |
| Dimension I (inch) | 1-1/2 |
| Dimension J (inch) | 1/2-13 UNCx1-1/4 |
| Dimension T (inch) | 3/32 |
| Isolator Type | Neoprene |
| Max. Deflection (inch) | 0.15 |
| Max. Load Shear | 800 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

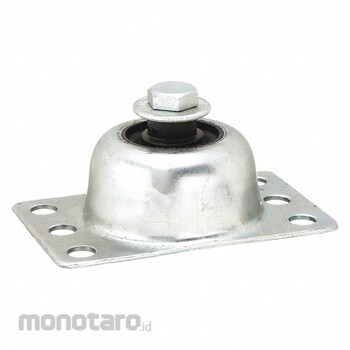

These elastomer-style floor-mount vibration isolators are composed of a steel mounting plate with a slightly tapered, cylindrical neoprene element. They provide greater deflection and more vibration reduction than isolation pads or mats.
