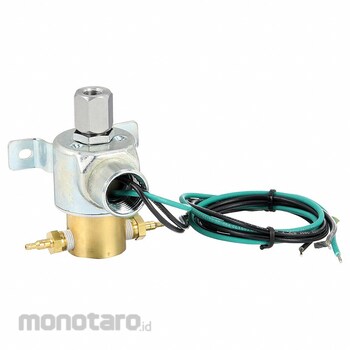

JOHNSON CONTROLS Electrically Actuated Air-Switching Valves
#Grup produk P110104126
Spesifikasi
| UNSPSC | 40141603 |
|---|---|
| Air consumption (CFM) | 1.5 |
| Body Material | Brass |
| Body Pattern | Three-Way |
| Common Port Connection Gender | Male |
| Common Port Connection Size (inch) | 1/4 |
| Common Port Connection Type | Barbed Hose |
| Control Action | Direct Acting/Reverse Acting |
| Electrical Lead Length (inch) | 18 |
| Enclosure Type | Open Frame |
| For Media | Air |
| Frequency (Hz) | 50/60 |
| Installation Orientation | Versatile |
| Maximum Operating Pressure (psi) | 30 |
| Maximum Operating Temperature (°F) | 130 |
| Minimum Operating Temperature (°F) | 32 |
| Normally Closed Port Connection Gender | Male |
| Normally Closed Port Connection Size (inch) | 1/4 |
| Normally Closed Port Connection Type | Barbed Hose |
| Normally Open Port Connection Gender | Female |
| Normally Open Port Connection Size (inch) | 1/8 |
| Normally Open Port Connection Type | NPT |
| Number of Port Connections | 3 |
| Overall Depth (inch) | 1-1/2 |
| Overall Length (inch) | 3 |
| Overall Width (inch) | 2-1/2 |
| Port Types Included | Common; Normally Closed; Normally Open |
| Power Consumption (W) | 6.5 |
| Standards | CSA; UL Listed |
| Valve Action | Normally Closed; Normally Open |
| Voltage (V) | 24 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These valves switch one pneumatic input between two possible outputs. They control different components or configure a singular component to switch between two states.
