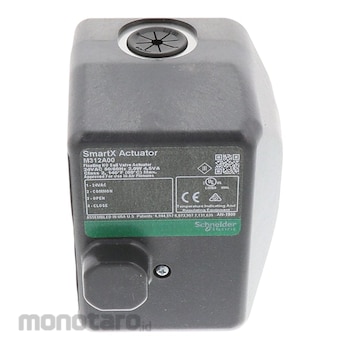

Schneider Electric Electric Valve Actuators
#Grup produk P110103862
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 31160000 |
|---|---|
| Compatible Valve Action | Normally ClosedNormally Open |
| Compatible Valve Body Pattern | Three-WayTwo-Way |
| Control Signal | Floating Point |
| Electrical Lead Length (ft) | 10 |
| Frequency (Hz) | 50/60 |
| Housing Material | Plastic |
| Includes Electrical Leads | Electrical Leads Included |
| Installation Orientation | Horizontal |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| NEMA Rating | Not Rated |
| Overall Depth (inch) | 4-1/2 |
| Overall Height (inch) | 3-3/4 |
| Overall Width (inch) | 5-1/8 |
| Return Action | Spring Return |
| Voltage (V) | 24 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
-2-14.FCC Part15 Class B and ICES-003 Class B Emissions Compliant; CRN OC0970.9012345678NTY; CSA E60730-1; cULus Listed per UL 60730-1 and -2-14; EMC2014/30/EU; EN 60730-1 and -2-14.EN 61000-6-2 Immunity and EN 61000-6-3 Emissions Compliant; European Directive RoHS 2 Directive 2011/65/EU; LVD 2014/35/EU; RCM Mark; REACH Regulation (EC)1907/2006Ulasan Produk
